MN MODEL MN91 Upgrade parts Shock absorber and Connect Rod

MN MODEL MN91 Upgrade parts

Product name: Shock absorber and Connect Rod

Suitable model: MN-RC MN90

Quantity: 1set

Color: Black, silver, red

Weight: 142g

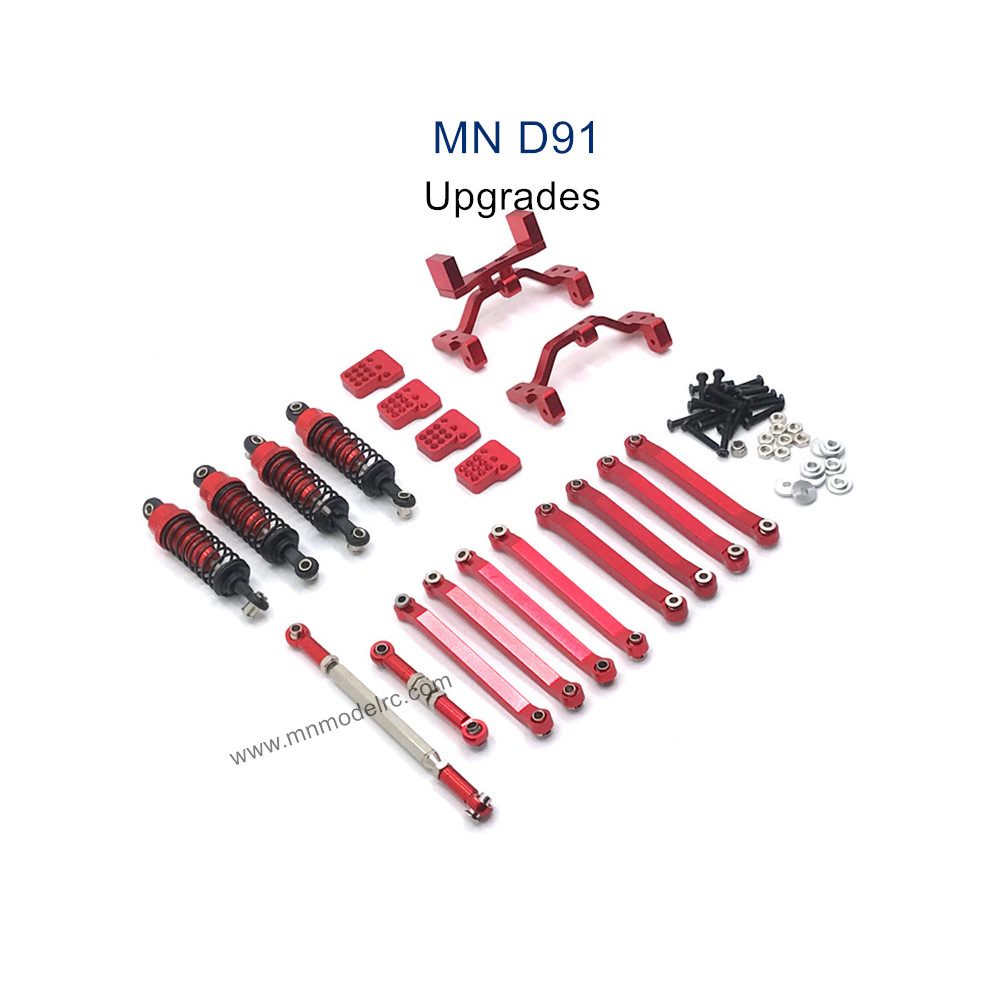

MN MODEL MN91 Upgrade parts Shock absorber and Connect Rod includes accessories:

Bridge steering gear tie rod seat *1

Semi-metal hydraulic shock absorber *4

Shock absorber support *4

Fixed connecting rod *8 (four long and four short)

Steering link *1

Steering gear link *1

MN MODEL MN91 Upgrade parts Shock absorber and Connect Rod Size:

The total length of the four long connecting rods is 65.5mm, and the hole distance is 59.5mm

The total length of 4pcs short connecting rod is 63mm, the hole distance is 57mm

Steering connecting rod 89mm-100mm, hole distance 82mm-93mm

Steering gear connecting rod 46mm-56mm, hole distance 39-49mm

The total length of the shock absorber is 62mm, the hole distance is 56mm, and the stroke is 7mm

MN MODEL MN91 RC Car function description:

1. The use of soft tires helps to cushion the collision while also providing a strong grip for the remote control car.

2. The all-metal chassis is strong and wear-resistant, which can better protect the internal parts.

3. 180 motor is used to improve the driving efficiency of the vehicle. In addition, it is equipped with a 7.4V 500M lithium battery, which can be used for about 25 minutes.

4. Use 2.4Ghz 4CH remote control, allowing players to control the vehicle left and right, forward and backward.
