MN MODEL MN222 RTR 1/10 2.4G 4WD RC Climbing Car

MN MODEL MN222 RTR 1/10 2.4G 4WD RC Climbing Car

Product name: MN MODEL MN222 RC Car

Product ratio: 1/10

Product color: Orange, gray

Material: Nylon, metal

Weight: 92.5g

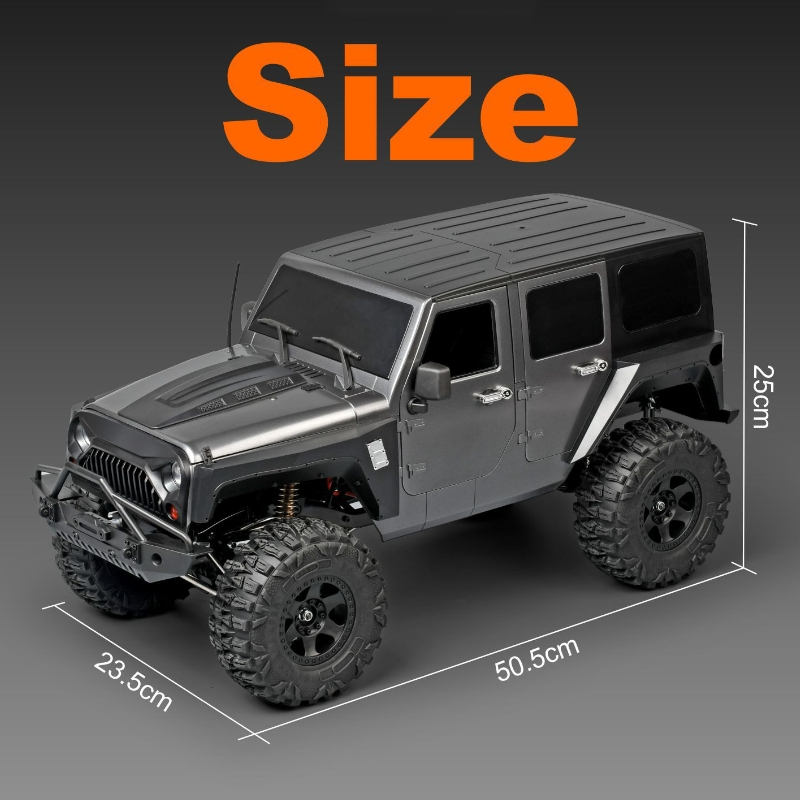

Product specification: 24*52*25cm

Product Battery: 7.4V 1200mah lithium battery

Remote control battery: 3* "AA" (purchased separately)

Charging: USB charging cable

Speed: 12km/h

Remote control time: 20min

Charging time: 180min

Remote control distance: about 150m

Motor: 550 strong magneto

Steering gear: 55g beam steering gear

Protection function: Yes

Frequency: 2.4Ghz

Wheelbase parameters:

Wheelbase 270mm

Front wheelbase 200mm

Rear wheelbase 190mm

Configuration of MN MODEL MN222:

• Finished car*1

• Remote control*1

• Body battery*1

• Charging Cable*1

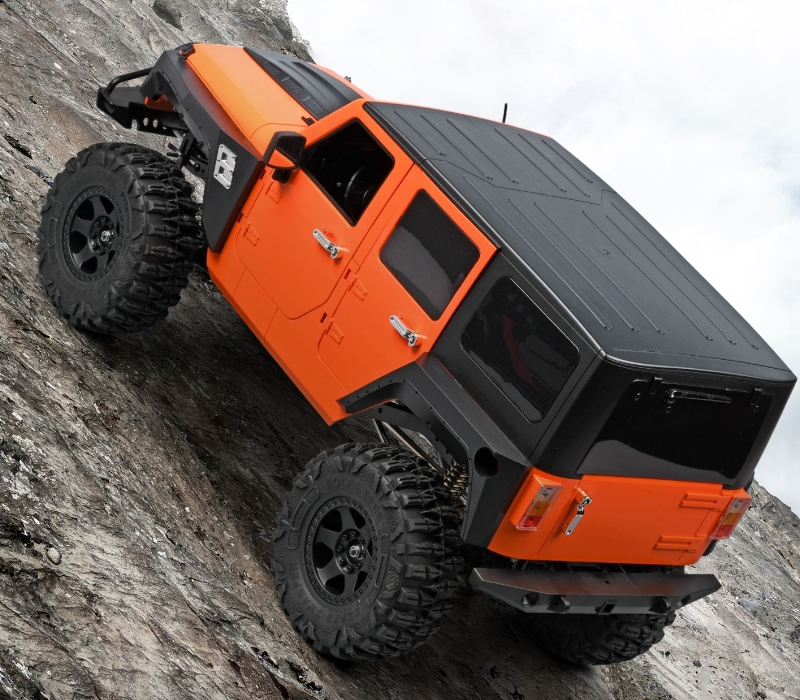

MN MODEL MN222 climbing performance parameters:

Approach Angle: 54°

Departure Angle: 65°

Crossing Angle: 68°

Ground spacing: 40mm

Maximum climb (Angle) : 40°/84%

Related functions of MN-RC MN222:

1. MN222 adopts 6-CH remote control, which can move forward and back, turn left and right, and can be used for about 20 minutes, the farthest remote control distance is about 150 meters, and three-speed shift can be realized.

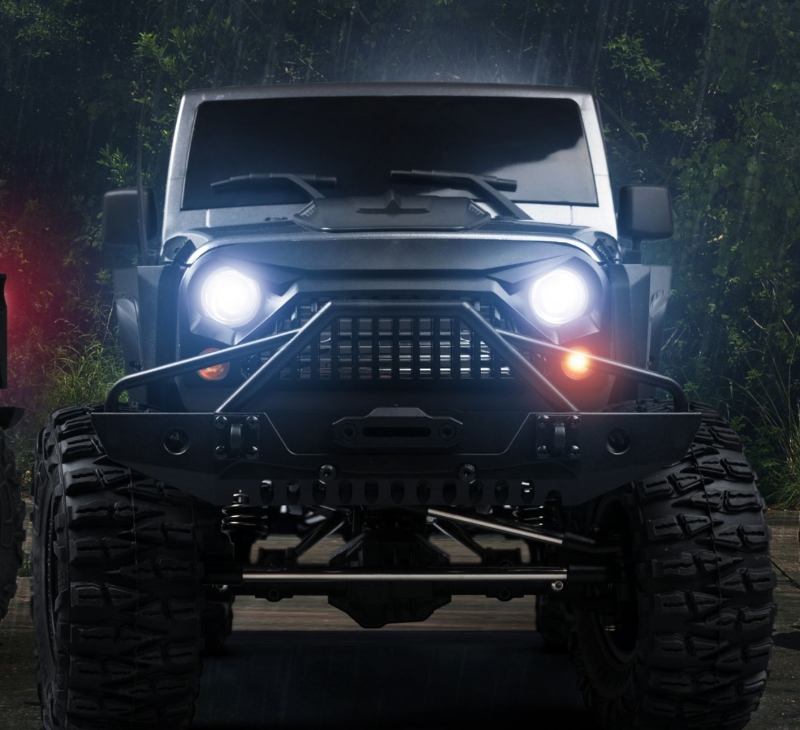

2. MN222 is designed and configured with cold light, including headlights, turn signals and reverse lights.

3. MN222 has charging status warning function. In the charging state, the red light is on and the green light is blinking. In a fully charged state, the red light is on, and the green light is on.

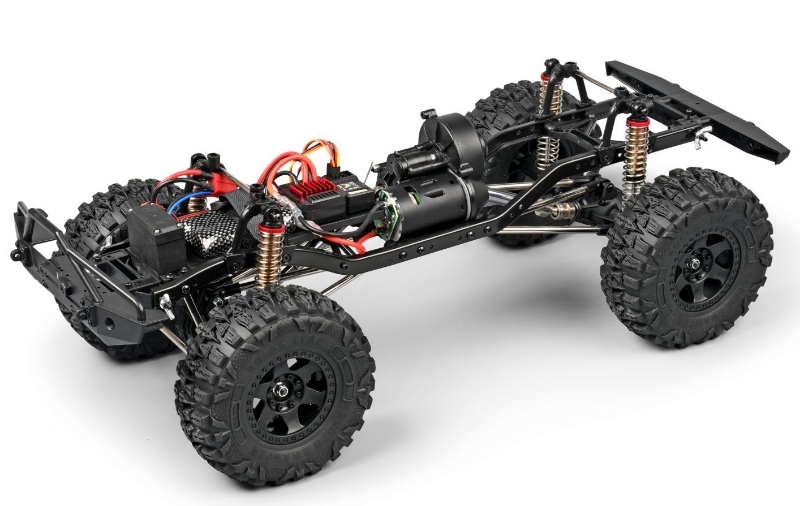

Introduction to the bottom structure of MN-RC MN222:

MN MODEL MN222 is equipped with 120A ESC and 550 motors at the bottom, so that the vehicle has strong torque and powerful power, can achieve equal ratio control, the vehicle is responsive, and can fine-adjust the deviation.

Appearance design of MN-RC MN222:

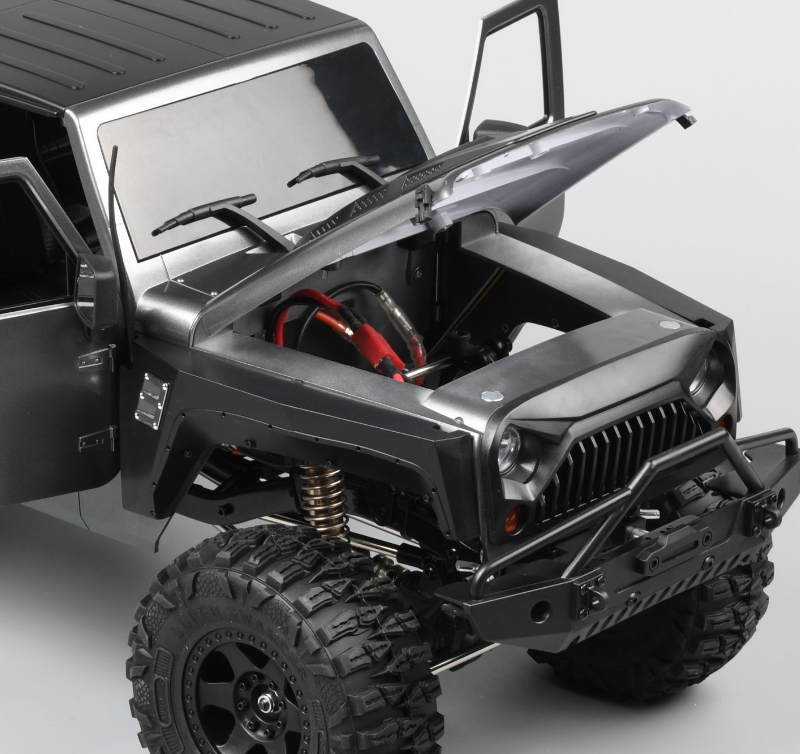

The interior design of the MN MODEL MN222 is exquisite, which is very similar to the interior design of a real car. In addition, the battery replacement operation of the MN222 is designed for replaceable operation when the hood is opened. The internal use of 7.4V1200mAh lithium battery, this battery equipped with a charger also has overcharge protection function.

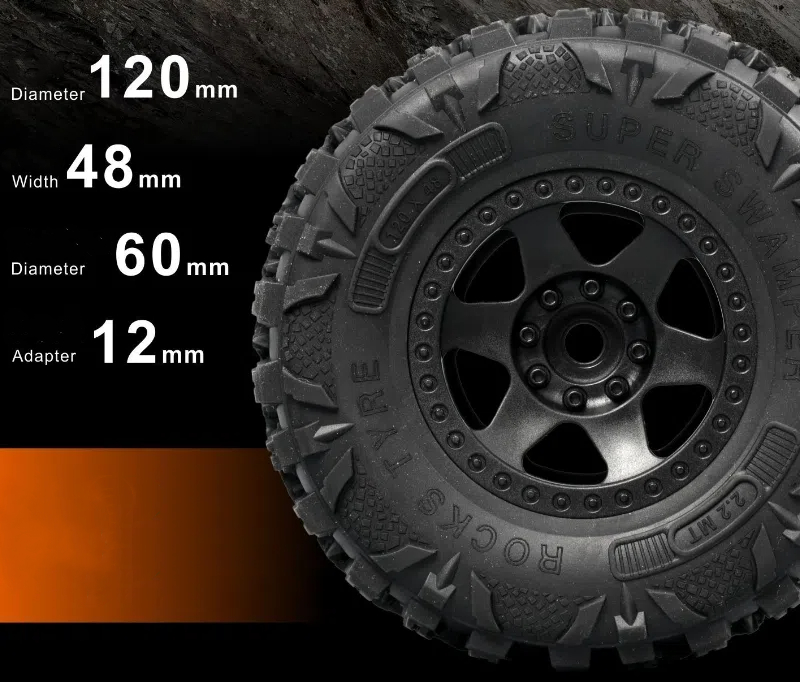

MN-RC MN222 tire introduction:

MN MODEL MN222 adopts a locking structure, which can prevent dust and water from entering the inside of the wheel hub, and also avoid spinning and idling.
